motor_dummy.MotorDummy Class Reference

This is the dummy class to simulate a motorized stage. More...

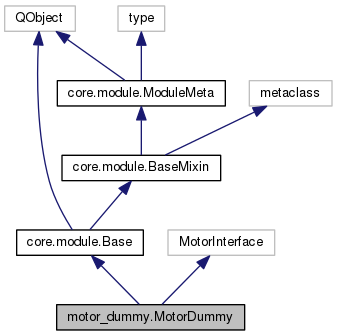

Inheritance diagram for motor_dummy.MotorDummy:

Collaboration diagram for motor_dummy.MotorDummy:

Public Member Functions
def	__init__ (self, config, kwargs)
def	on_activate (self)
def	on_deactivate (self)
def	get_constraints (self)
	Retrieve the hardware constrains from the motor device. More...
def	move_rel (self, param_dict)
	Moves stage in given direction (relative movement) More...
def	move_abs (self, param_dict)
	Moves stage to absolute position (absolute movement) More...
def	abort (self)
	Stops movement of the stage. More...
def	get_pos (self, param_list=None)
	Gets current position of the stage arms. More...
def	get_status (self, param_list=None)
	Get the status of the position. More...
def	calibrate (self, param_list=None)
	Calibrates the stage. More...
def	get_velocity (self, param_list=None)
	Gets the current velocity for all connected axes. More...
def	set_velocity (self, param_dict=None)
	Write new value for velocity. More...
Public Member Functions inherited from core.module.BaseMixin
def	__init__ (self, manager, name, config=None, callbacks=None, kwargs)
	Initialise Base class object and set up its state machine. More...
def	log (self)
	Returns a logger object.
def	is_module_threaded (self)
	Returns whether the module shall be started in a thread.
def	on_activate (self)
	Method called when module is activated. More...
def	on_deactivate (self)
	Method called when module is deactivated. More...
def	getStatusVariables (self)
	Return a dict of variable names and their content representing the module state for saving. More...
def	setStatusVariables (self, variableDict)
	Give a module a dict of variable names and their content representing the module state. More...
def	getConfiguration (self)
	Return the configration dictionary for this module. More...
def	get_connector (self, connector_name)
	Return module connected to the given named connector. More...
Public Member Functions inherited from core.module.ModuleMeta
def	__new__ (cls, name, bases, attrs)
	Collect declared Connectors, ConfigOptions and StatusVars into dictionaries. More...

Additional Inherited Members
Public Attributes inherited from core.module.BaseMixin
	module_state
	connectors

Detailed Description

This is the dummy class to simulate a motorized stage.

Example config for copy-paste:

motor_dummy: module 'motor.motor_dummy.MotorDummy'

Member Function Documentation

abort()

def motor_dummy.MotorDummy.abort

(

self

)

Stops movement of the stage.

Returns

int: error code (0:OK, -1:error)

calibrate()

def motor_dummy.MotorDummy.calibrate	(		self,
			param_list = None
	)

Calibrates the stage.

Parameters

dict	param_list: param_list: optional, if a specific calibration of an axis is desired, then the labels of the needed axis should be passed in the param_list. If nothing is passed, then all connected axis will be calibrated.

Returns

int: error code (0:OK, -1:error)

After calibration the stage moves to home position which will be the zero point for the passed axis. The calibration procedure will be different for each stage.

get_constraints()

def motor_dummy.MotorDummy.get_constraints

(

self

)

Retrieve the hardware constrains from the motor device.

Returns

dict: dict with constraints for the magnet hardware. These constraints will be passed via the logic to the GUI so that proper display elements with boundary conditions could be made.

Provides all the constraints for each axis of a motorized stage (like total travel distance, velocity, ...) Each axis has its own dictionary, where the label is used as the identifier throughout the whole module. The dictionaries for each axis are again grouped together in a constraints dictionary in the form

{'<label_axis0>': axis0 }

where axis0 is again a dict with the possible values defined below. The possible keys in the constraint are defined here in the interface file. If the hardware does not support the values for the constraints, then insert just None. If you are not sure about the meaning, look in other hardware files to get an impression.

get_pos()

def motor_dummy.MotorDummy.get_pos	(		self,
			param_list = None
	)

Gets current position of the stage arms.

Parameters

list	param_list: optional, if a specific position of an axis is desired, then the labels of the needed axis should be passed as the param_list. If nothing is passed, then from each axis the position is asked.

Returns

dict: with keys being the axis labels and item the current position.

get_status()

def motor_dummy.MotorDummy.get_status	(		self,
			param_list = None
	)

Get the status of the position.

Parameters

list	param_list: optional, if a specific status of an axis is desired, then the labels of the needed axis should be passed in the param_list. If nothing is passed, then from each axis the status is asked.

Returns

dict: with the axis label as key and the status number as item.

get_velocity()

def motor_dummy.MotorDummy.get_velocity	(		self,
			param_list = None
	)

Gets the current velocity for all connected axes.

Parameters

dict	param_list: optional, if a specific velocity of an axis is desired, then the labels of the needed axis should be passed as the param_list. If nothing is passed, then from each axis the velocity is asked.

Returns

dict : with the axis label as key and the velocity as item.

move_abs()

def motor_dummy.MotorDummy.move_abs	(		self,
			param_dict
	)

Moves stage to absolute position (absolute movement)

Parameters

dict	param_dict: dictionary, which passes all the relevant parameters, which should be changed. Usage: {'axis_label': <a-value>}. 'axis_label' must correspond to a label given to one of the axis. A smart idea would be to ask the position after the movement.

move_rel()

def motor_dummy.MotorDummy.move_rel	(		self,
			param_dict
	)

Moves stage in given direction (relative movement)

Parameters

dict

param_dict: dictionary, which passes all the relevant parameters, which should be changed. With get_constraints() you can obtain all possible parameters of that stage. According to this parameter set you have to pass a dictionary with keys that are called like the parameters from get_constraints() and assign a SI value to that. For a movement in x the dict should e.g. have the form: dict = { 'x' : 23 } where the label 'x' corresponds to the chosen axis label.

A smart idea would be to ask the position after the movement.

set_velocity()

def motor_dummy.MotorDummy.set_velocity	(		self,
			param_dict = None
	)

Write new value for velocity.

Parameters

dict	param_dict: dictionary, which passes all the relevant parameters, which should be changed. Usage: {'axis_label': <the-velocity-value>}. 'axis_label' must correspond to a label given to one of the axis.

---

The documentation for this class was generated from the following file:

• hardware/motor/motor_dummy.py
