Define the controls for a slow counter. More...

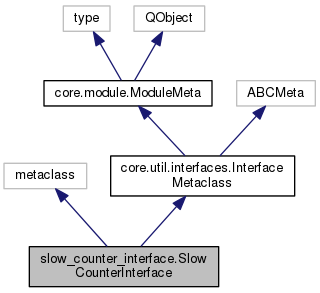

Inheritance diagram for slow_counter_interface.SlowCounterInterface:
Collaboration diagram for slow_counter_interface.SlowCounterInterface:
Public Member Functions | |
| def | get_constraints (self) |
| Retrieve the hardware constrains from the counter device. More... | |
| def | set_up_clock (self, clock_frequency=None, clock_channel=None) |
| Configures the hardware clock of the NiDAQ card to give the timing. More... | |
| def | set_up_counter (self, counter_channels=None, sources=None, clock_channel=None, counter_buffer=None) |
| Configures the actual counter with a given clock. More... | |
| def | get_counter (self, samples=None) |
| Returns the current counts per second of the counter. More... | |
| def | get_counter_channels (self) |
| Returns the list of counter channel names. More... | |
| def | close_counter (self) |
| Closes the counter and cleans up afterwards. More... | |
| def | close_clock (self) |
| Closes the clock and cleans up afterwards. More... | |
 Public Member Functions inherited from core.module.ModuleMeta | |
| def | __new__ (cls, name, bases, attrs) |
| Collect declared Connectors, ConfigOptions and StatusVars into dictionaries. More... | |
Detailed Description
Define the controls for a slow counter.
Member Function Documentation
◆ close_clock()
| def slow_counter_interface.SlowCounterInterface.close_clock | ( | self | ) |
Closes the clock and cleans up afterwards.
- Returns
- int: error code (0:OK, -1:error)
◆ close_counter()
| def slow_counter_interface.SlowCounterInterface.close_counter | ( | self | ) |
Closes the counter and cleans up afterwards.
- Returns
- int: error code (0:OK, -1:error)
◆ get_constraints()
| def slow_counter_interface.SlowCounterInterface.get_constraints | ( | self | ) |
Retrieve the hardware constrains from the counter device.
- Returns
- SlowCounterConstraints: object with constraints for the counter
◆ get_counter()
| def slow_counter_interface.SlowCounterInterface.get_counter | ( | self, | |
samples = None |
|||
| ) |
Returns the current counts per second of the counter.
- Parameters
-
int samples: if defined, number of samples to read in one go
- Returns
- numpy.array((n, uint32)): the photon counts per second for n channels
◆ get_counter_channels()
| def slow_counter_interface.SlowCounterInterface.get_counter_channels | ( | self | ) |
Returns the list of counter channel names.
- Returns
- list(str): channel names
Most methods calling this might just care about the number of channels, though.
◆ set_up_clock()
| def slow_counter_interface.SlowCounterInterface.set_up_clock | ( | self, | |
clock_frequency = None, |
|||
clock_channel = None |
|||
| ) |
Configures the hardware clock of the NiDAQ card to give the timing.
- Parameters
-
float clock_frequency: if defined, this sets the frequency of the clock string clock_channel: if defined, this is the physical channel of the clock
- Returns
- int: error code (0:OK, -1:error)
◆ set_up_counter()
| def slow_counter_interface.SlowCounterInterface.set_up_counter | ( | self, | |
counter_channels = None, |
|||
sources = None, |
|||
clock_channel = None, |
|||
counter_buffer = None |
|||
| ) |
Configures the actual counter with a given clock.
- Parameters
-
list(str) counter_channels: optional, physical channel of the counter list(str) sources: optional, physical channel where the photons photons are to count from str clock_channel: optional, specifies the clock channel for the counter int counter_buffer: optional, a buffer of specified integer length, where in each bin the count numbers are saved.
- Returns
- int: error code (0:OK, -1:error)
There need to be exactly the same number sof sources and counter channels and they need to be given in the same order. All counter channels share the same clock.
The documentation for this class was generated from the following file:
- interface/slow_counter_interface.py
