Hardware class to controls a Time Tagger from Swabian Instruments. More...

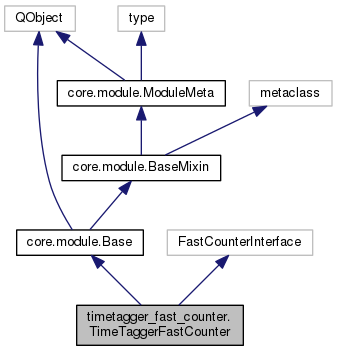

Public Member Functions | |
| def | on_activate (self) |
| Connect and configure the access to the FPGA. | |
| def | get_constraints (self) |
| Retrieve the hardware constrains from the Fast counting device. More... | |
| def | on_deactivate (self) |
| Deactivate the FPGA. | |
| def | configure (self, bin_width_s, record_length_s, number_of_gates=0) |
| Configuration of the fast counter. More... | |
| def | start_measure (self) |
| Start the fast counter. More... | |
| def | stop_measure (self) |
| Stop the fast counter. More... | |
| def | pause_measure (self) |
| Pauses the current measurement. More... | |
| def | continue_measure (self) |
| Continues the current measurement. More... | |
| def | is_gated (self) |
| Check the gated counting possibility. More... | |
| def | get_data_trace (self) |
| Polls the current timetrace data from the fast counter. More... | |
| def | get_status (self) |
| Receives the current status of the Fast Counter and outputs it as return value. More... | |
| def | get_binwidth (self) |
| Returns the width of a single timebin in the timetrace in seconds. More... | |
 Public Member Functions inherited from core.module.BaseMixin | |
| def | __init__ (self, manager, name, config=None, callbacks=None, kwargs) |
| Initialise Base class object and set up its state machine. More... | |
| def | log (self) |
| Returns a logger object. | |
| def | is_module_threaded (self) |
| Returns whether the module shall be started in a thread. | |
| def | on_activate (self) |
| Method called when module is activated. More... | |
| def | on_deactivate (self) |
| Method called when module is deactivated. More... | |
| def | getStatusVariables (self) |
| Return a dict of variable names and their content representing the module state for saving. More... | |
| def | setStatusVariables (self, variableDict) |
| Give a module a dict of variable names and their content representing the module state. More... | |
| def | getConfiguration (self) |
| Return the configration dictionary for this module. More... | |
| def | get_connector (self, connector_name) |
| Return module connected to the given named connector. More... | |
| Public Member Functions inherited from core.module.ModuleMeta | |
| def | __new__ (cls, name, bases, attrs) |
| Collect declared Connectors, ConfigOptions and StatusVars into dictionaries. More... | |
Public Attributes | |
| statusvar | |
| pulsed | |
| Public Attributes inherited from core.module.BaseMixin | |
| module_state | |
| connectors | |
Detailed Description
Hardware class to controls a Time Tagger from Swabian Instruments.
Example config for copy-paste:
fastcounter_timetagger: module 'swabian_instruments.timetagger_fast_counter.TimeTaggerFastCounter' timetagger_channel_apd_0 0 timetagger_channel_apd_1 1 timetagger_channel_detect 2 timetagger_channel_sequence 3 timetagger_sum_channels 4
Member Function Documentation
◆ configure()
| def timetagger_fast_counter.TimeTaggerFastCounter.configure | ( | self, | |
| bin_width_s, | |||
| record_length_s, | |||
number_of_gates = 0 |
|||
| ) |
Configuration of the fast counter.
- Parameters
-
float bin_width_s: Length of a single time bin in the time trace histogram in seconds. float record_length_s: Total length of the timetrace/each single gate in seconds. int number_of_gates: optional, number of gates in the pulse sequence. Ignore for not gated counter.
- Returns
- tuple(binwidth_s, gate_length_s, number_of_gates): binwidth_s float the actual set binwidth in seconds gate_length_s the actual set gate length in seconds number_of_gates the number of gated, which are accepted
◆ continue_measure()
| def timetagger_fast_counter.TimeTaggerFastCounter.continue_measure | ( | self | ) |
Continues the current measurement.
If fast counter is in pause state, then fast counter will be continued.
◆ get_binwidth()
| def timetagger_fast_counter.TimeTaggerFastCounter.get_binwidth | ( | self | ) |
Returns the width of a single timebin in the timetrace in seconds.
◆ get_constraints()
| def timetagger_fast_counter.TimeTaggerFastCounter.get_constraints | ( | self | ) |
Retrieve the hardware constrains from the Fast counting device.
- Returns
- dict: dict with keys being the constraint names as string and items are the definition for the constaints.
The keys of the returned dictionary are the str name for the constraints (which are set in this method).
NO OTHER KEYS SHOULD BE INVENTED!
If you are not sure about the meaning, look in other hardware files to get an impression. If still additional constraints are needed, then they have to be added to all files containing this interface.
The items of the keys are again dictionaries which have the generic dictionary form: {'min':
, 'max':
, 'step':
, 'unit': '
'}
Only the key 'hardware_binwidth_list' differs, since they contain the list of possible binwidths.
If the constraints cannot be set in the fast counting hardware then write just zero to each key of the generic dicts. Note that there is a difference between float input (0.0) and integer input (0), because some logic modules might rely on that distinction.
ALL THE PRESENT KEYS OF THE CONSTRAINTS DICT MUST BE ASSIGNED!
◆ get_data_trace()
| def timetagger_fast_counter.TimeTaggerFastCounter.get_data_trace | ( | self | ) |
Polls the current timetrace data from the fast counter.
- Returns
- numpy.array: 2 dimensional array of dtype = int64. This counter is gated the the return array has the following shape: returnarray[gate_index, timebin_index]
The binning, specified by calling configure() in forehand, must be taken care of in this hardware class. A possible overflow of the histogram bins must be caught here and taken care of.
◆ get_status()
| def timetagger_fast_counter.TimeTaggerFastCounter.get_status | ( | self | ) |
Receives the current status of the Fast Counter and outputs it as return value.
0 = unconfigured 1 = idle 2 = running 3 = paused -1 = error state
◆ is_gated()
| def timetagger_fast_counter.TimeTaggerFastCounter.is_gated | ( | self | ) |
Check the gated counting possibility.
Boolean return value indicates if the fast counter is a gated counter (TRUE) or not (FALSE).
◆ pause_measure()
| def timetagger_fast_counter.TimeTaggerFastCounter.pause_measure | ( | self | ) |
Pauses the current measurement.
Fast counter must be initially in the run state to make it pause.
◆ start_measure()
| def timetagger_fast_counter.TimeTaggerFastCounter.start_measure | ( | self | ) |
Start the fast counter.
◆ stop_measure()
| def timetagger_fast_counter.TimeTaggerFastCounter.stop_measure | ( | self | ) |
Stop the fast counter.
The documentation for this class was generated from the following file:
- hardware/swabian_instruments/timetagger_fast_counter.py
