zaber_motor_rotation_stage.MotorRotationZaber Class Reference

unstable Christoph Müller, Simon Schmitt This is the Interface class to define the controls for the simple microwave hardware. More...

Inheritance diagram for zaber_motor_rotation_stage.MotorRotationZaber:

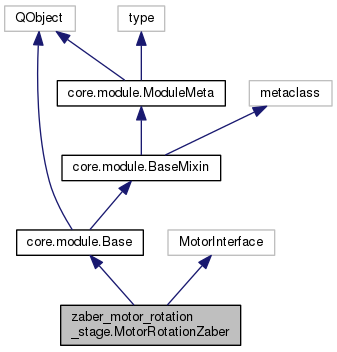

Collaboration diagram for zaber_motor_rotation_stage.MotorRotationZaber:

Public Member Functions
def	__init__ (self, kwargs)
def	on_activate (self)
	Initialisation performed during activation of the module.
def	on_deactivate (self)
	Deinitialisation performed during deactivation of the module.
def	get_constraints (self)
	Retrieve the hardware constrains from the motor device. More...
def	move_rel (self, param_dict)
	Moves stage by a given angle (relative movement) More...
def	move_abs (self, param_dict)
	Moves stage to an absolute angle (absolute movement) More...
def	abort (self)
	Stops movement of the stage. More...
def	get_pos (self, param_list=None)
	Gets current position of the rotation stage. More...
def	get_status (self, param_list=None)
	Get the status of the position. More...
def	calibrate (self, param_list=None)
	Calibrates the rotation motor. More...
def	get_velocity (self, param_list=None)
	Asks current value for velocity. More...
def	set_velocity (self, param_dict)
	Write new value for velocity. More...
Public Member Functions inherited from core.module.BaseMixin
def	__init__ (self, manager, name, config=None, callbacks=None, kwargs)
	Initialise Base class object and set up its state machine. More...
def	log (self)
	Returns a logger object.
def	is_module_threaded (self)
	Returns whether the module shall be started in a thread.
def	on_activate (self)
	Method called when module is activated. More...
def	on_deactivate (self)
	Method called when module is deactivated. More...
def	getStatusVariables (self)
	Return a dict of variable names and their content representing the module state for saving. More...
def	setStatusVariables (self, variableDict)
	Give a module a dict of variable names and their content representing the module state. More...
def	getConfiguration (self)
	Return the configration dictionary for this module. More...
def	get_connector (self, connector_name)
	Return module connected to the given named connector. More...
Public Member Functions inherited from core.module.ModuleMeta
def	__new__ (cls, name, bases, attrs)
	Collect declared Connectors, ConfigOptions and StatusVars into dictionaries. More...

Static Public Attributes
	velocity_conversion = ConfigOption('zaber_speed_conversion', 9.375, missing='warn')

Additional Inherited Members
Public Attributes inherited from core.module.BaseMixin
	module_state
	connectors

Detailed Description

unstable Christoph Müller, Simon Schmitt This is the Interface class to define the controls for the simple microwave hardware.

Example config for copy-paste:

motorstage_zaber: module 'motor.zaber_motor_rotation_stage.MotorRotationZaber' com_port_zaber 'ASRL1::INSTR' zaber_baud_rate 9600 zaber_timeout 1000 zaber_term_char '
'

zaber_axis_label 'phi' zaber_angle_min -1e5 # in degrees zaber_angle_max 1e5 # in degrees zaber_angle_step 1e-5 # in degrees

zaber_velocity_min 1e-3 # in degrees/s zaber_velocity_max 10 # in degrees/s zaber_velocity_step -1e-3 # in degrees/s

zaber_micro_step_size 234.375e-6 zaber_speed_conversion 9.375

Member Function Documentation

abort()

def zaber_motor_rotation_stage.MotorRotationZaber.abort

(

self

)

Stops movement of the stage.

Returns

int: error code (0:OK, -1:error)

calibrate()

def zaber_motor_rotation_stage.MotorRotationZaber.calibrate	(		self,
			param_list = None
	)

Calibrates the rotation motor.

Parameters

list	param_list: Dictionary with axis name

Returns

dict pos: Dictionary with axis name and pos in deg

get_constraints()

def zaber_motor_rotation_stage.MotorRotationZaber.get_constraints

(

self

)

Retrieve the hardware constrains from the motor device.

Returns

dict: dict with constraints for the sequence generation and GUI

Provides all the constraints for the xyz stage and rot stage (like total movement, velocity, ...) Each constraint is a tuple of the form (min_value, max_value, stepsize)

get_pos()

def zaber_motor_rotation_stage.MotorRotationZaber.get_pos	(		self,
			param_list = None
	)

Gets current position of the rotation stage.

Parameters

list	param_list: List with axis name

Returns

dict pos: Dictionary with axis name and pos in deg

get_status()

def zaber_motor_rotation_stage.MotorRotationZaber.get_status	(		self,
			param_list = None
	)

Get the status of the position.

Parameters

list	param_list: optional, if a specific status of an axis is desired, then the labels of the needed axis should be passed in the param_list. If nothing is passed, then from each axis the status is asked.

Returns

dict status: · 0 - idle, not currently executing any instructions · 1 - executing a home instruction · 10 - executing a manual move (i.e. the manual control knob is turned) · 20 - executing a move absolute instruction · 21 - executing a move relative instruction · 22 - executing a move at constant speed instruction · 23 - executing a stop instruction (i.e. decelerating)

get_velocity()

def zaber_motor_rotation_stage.MotorRotationZaber.get_velocity	(		self,
			param_list = None
	)

Asks current value for velocity.

Parameters

list	param_list: Dictionary with axis name

Returns

dict velocity: Dictionary with axis name and velocity in deg/s

move_abs()

def zaber_motor_rotation_stage.MotorRotationZaber.move_abs	(		self,
			param_dict
	)

Moves stage to an absolute angle (absolute movement)

Parameters

dict	param_dict: Dictionary with axis name and target position in deg

Returns

dict velocity: Dictionary with axis name and final position in deg

move_rel()

def zaber_motor_rotation_stage.MotorRotationZaber.move_rel	(		self,
			param_dict
	)

Moves stage by a given angle (relative movement)

Parameters

dict	param_dict: Dictionary with axis name and relative movement in deg

Returns

dict velocity: Dictionary with axis name and final position in deg

set_velocity()

def zaber_motor_rotation_stage.MotorRotationZaber.set_velocity	(		self,
			param_dict
	)

Write new value for velocity.

Parameters

dict	param_dict: Dictionary with axis name and target velocity in deg/s

Returns

dict velocity: Dictionary with axis name and target velocity in deg/s

---

The documentation for this class was generated from the following file:

• hardware/motor/zaber_motor_rotation_stage.py
